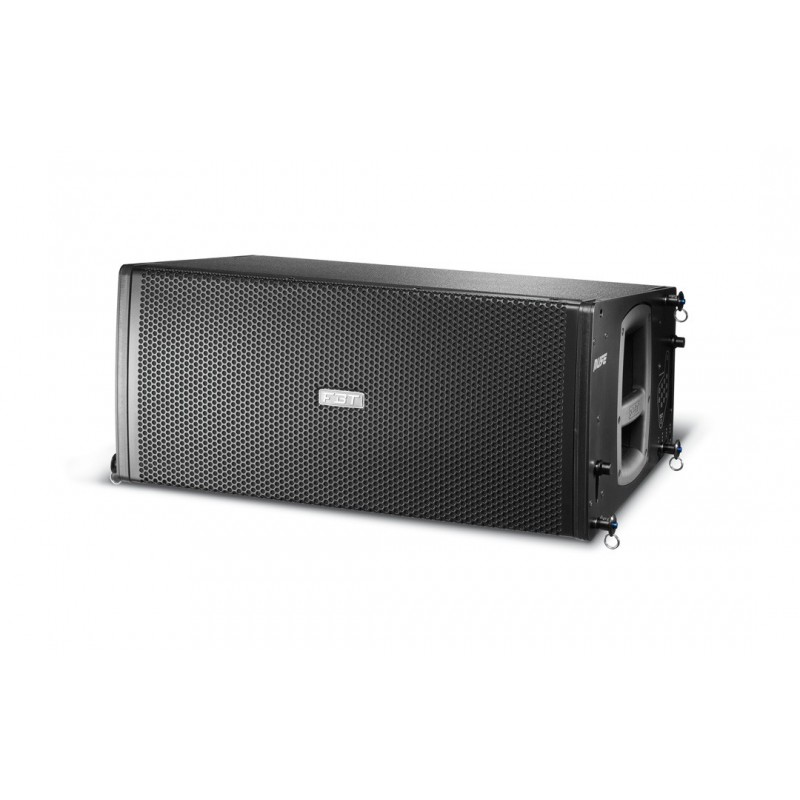

MUSE 210LA

0,000 TND

Precision coverage vertical active array 600W + 300W RMS - 135dB SPL

  • 2-way, compact bass-reflex line array system **Two 250mm (10") woofers with 64mm (2.5") voice coils
  • Two custom B&C HF compression drivers with 25mm (1") throats **Precision waveguide delivering 90° of horizontal dispersion up to 18Khz
  • Onboard Class-D bi-amp system delivering 600Wrms and 300Wrms for LF and HF with switch-mode power supplies
  • Onboard DSP processor with 8 EQ presets, adjustable HF level of +/- 5db for accurate amplitude shading

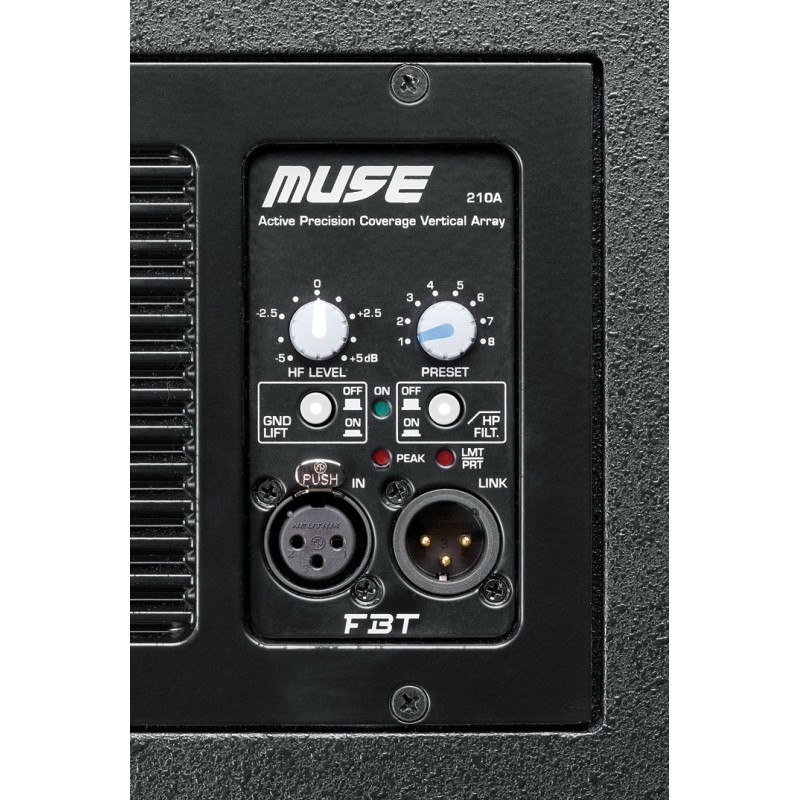

  • Control panel with XLR input and link, preset control, HF level control, HP-filter and ground lift
  • Strong birch plywood cabinet with integrated aluminum handles, hardware and fly-ware offering adjustable angling ranging from 0° to 10° in 1° increments
Quantité

*Built-in amplifier LF/HF: 600/300 W RMS

*Built-in amplifier peak LF/HF: 1200/600 W

*Frequency response: 55Hz - 20kHz -6dB

*Low frequency woofer: 2x10 - 2.5 coil inch

*High frequency driver: 2x1 - 1.7 coil inch

*Maximum SPL cont/peak: 128/135 dB

*Dispersion: 90° x 10° max dependant upon n° of element H x V

*Input impedance: 22 Kohm

*Crossover frequency: 1.1 KHz

*Ac power requirements: 640 VA

*Input connector: XLR with loop

*Net Dimension (WxHxD): 713x296x425 - 28.07x11.65x16.73 mm/inch

*Net weight: 38.2 / 84.21 kg/lb

*Transport Dimension (WxHxD): 790x375x520 - 31.10x14.76x20.47 mm/inch

*Transport weight: 41/90.38 kg/lb

MUSE 210 LA
