MUSE 118FSA/FSCA

0,000 TND

Processed Cardioid-Flyable Active Subwoofer

**Compact Hybrid band pass cardioid-arrayable subwoofer. Hybrid configuration permit to obtain extension and speed of vented with high SPL and acoustic filtering of band pass

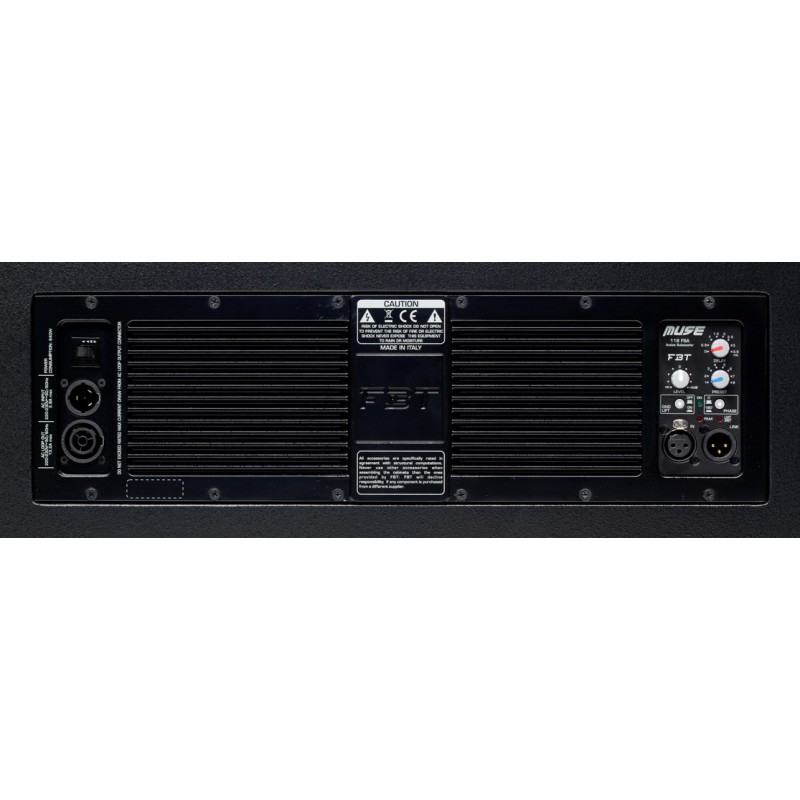

**Subwoofer can be suspended facing forward or rearward and user-configurable with capability of front- or rear- mounting the grille and amp module for aesthetic uniformity in cardioid configuration.

**For cardioid configurations with one SUB rear-firing and two sub front-firing, more than 15db SPL rejection can be obtained behind the array

**18’’ (460mm) custom B&C neodymium magnet high excursion woofer with 3’’ (75mm) voice coil

**Frequency Response from 33Hz to 1Hz

**Class D amplifier delivering 1200WRMS

Quantité

*Configuration: 1 HYBRID BANDPASS way

*Built-in amplifier LF/HF: 1200 W RMS

*Built-in amplifier peak LF/HF: 2400 W

*Frequency response: 33Hz-100Hz -6dB

*Low Frequency woofer: 1X18 - 3.5 coil - neodymium inch

*Maximum SPL cont/peak: 135/139 half-space dB

*Dispersion: Omnidirectional HxV

*Input impedance: 22 Kohm

*Crossover Frequency: preset dependant KHz

*AC Power requirements: 640 VA

*Input connector: XLR with loop

*Power cord: 5/ 16.4 m/ft

*Net Dimension (WxHxD): 652x500x750 / 25.66x19.68x29.52 mm/inch

*Net Weight: 67/147.70 kg/lb

*Transport Dimension (WxHxD): 700x650x800 / 27.55x25.59x31.49 mm/inch

*Transport Weight: 77/169.75 Kg/lb

MUSE 118FSA/FSCA
