J-15A

0,000 TND

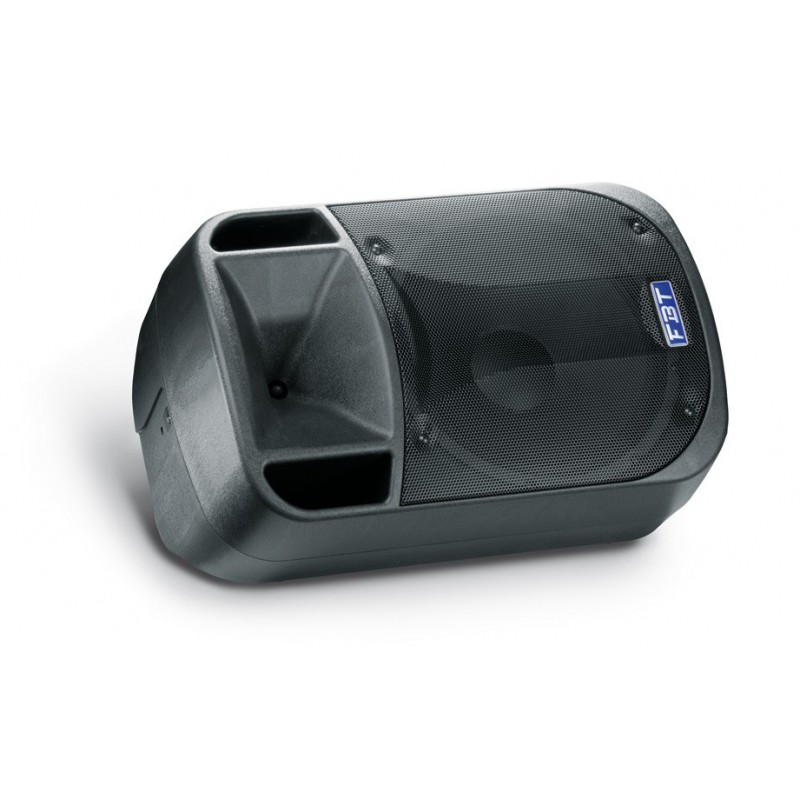

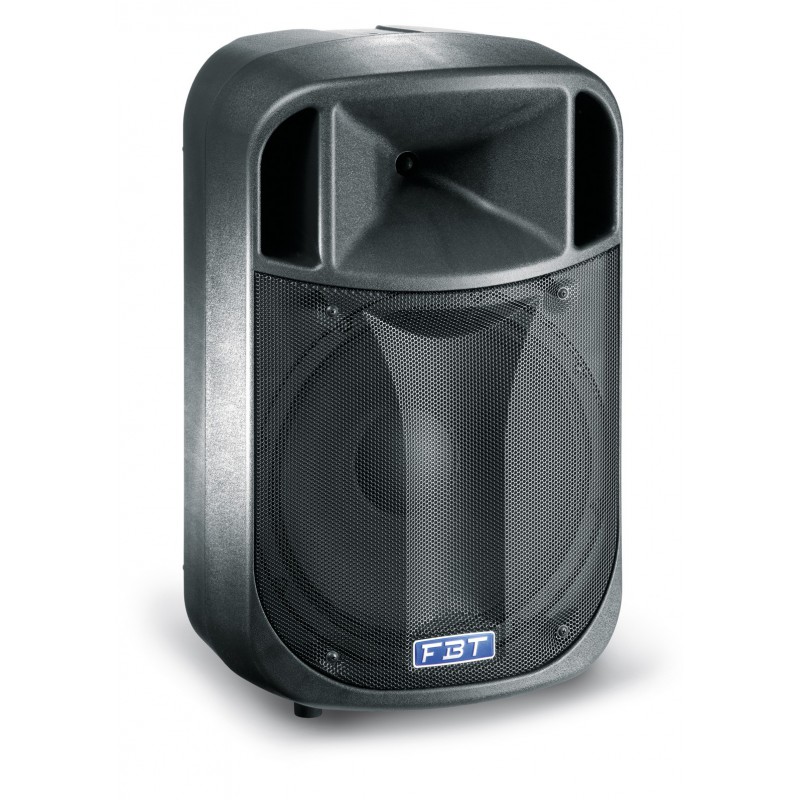

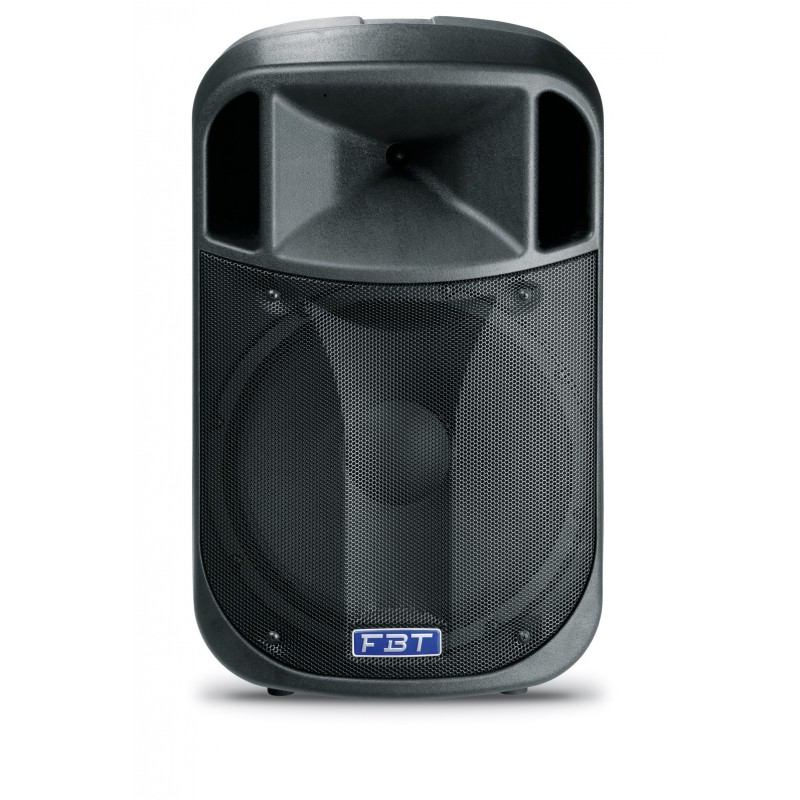

Processed Active Monitor 350W+ 100W RMS - 129dB SPL

  • 380mm (15’’) custom woofer with improved efficiency and linearity
  • 350Wrms class D amplifier for LF and 100Wrms for HF.
  • High efficiency switch mode power supply
  • On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability.
  • 4 DSP preset for maximum acoustical flexibility
Quantité

*Configuration: 2 way

*Built-in amplifier LF/HF: 350 / 100 W RMS

*Built-in amplifier peak LF/HF: 700 / 200 W

*Frequency response: 48Hz - 20KHz -6dB

*Low Frequency woofer: 15 - 2 coil inch

*High Frequency driver: 1 - 1 coil inch

*Maximum SPL cont/peak: 125 / 129 dB

*Dispersion: 90° x 60° HxV

*Input impedance: 22 Kohm

*Crossover Frequency: 1.8 KHz

*AC Power requirements: 400 VA

*Input connector: XLR-jack with loop

*Power cord: 5 / 16.4 m/ft

*Net Dimension (WxHxD): 410x663x387 - 16.14x26.10x15.23 mm/inch

*Net Weight: 14 / 30.86 Kg/lb

*Transport Dimension (WxHxD): 495x740x475 - 19.48x29.13x18.70 mm/inch

*Transport Weight: 17.1 / 37.69 Kg/lb
