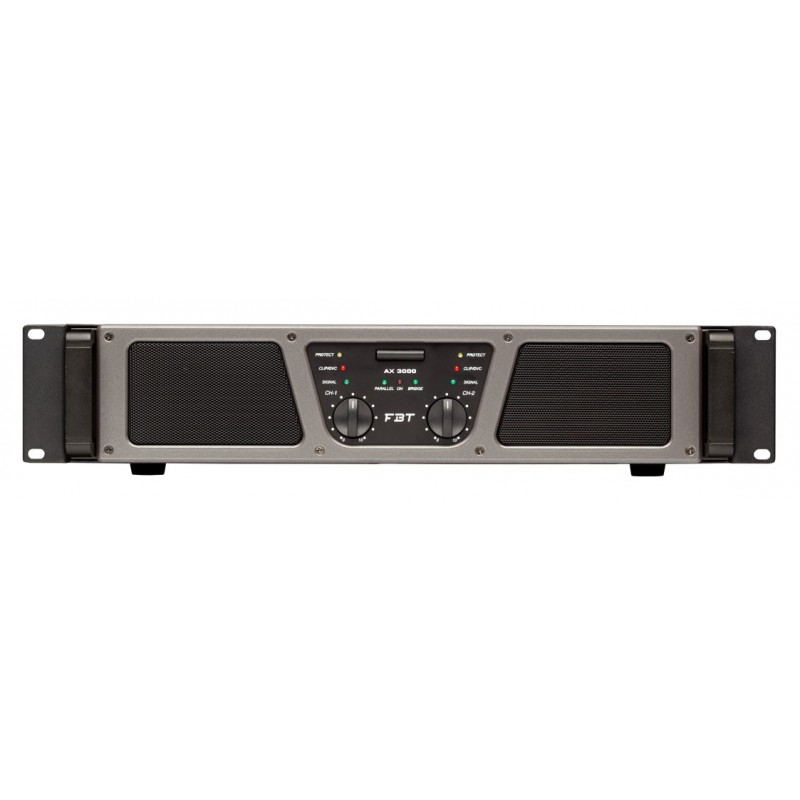

AX 2000 POWER AMPLIFIER
0,000 TND
AX POWER AMPLIFIERS
Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.
*Both channel driven 8 ohm 1% THD Continous/impulsive: 630/650
*Both channel driven 4 ohm 1% THD Continous/impulsive: 840/1000
*Bridge 8ohm 1% THD: 1680/2000
*Input impedance: 20K balanced
*Signal to noise ratio S/N: >100dB
*Total harmonic dist. (1kHz-4ohm): <0.03%
*Frequency response: 20Hz-40kHz -6dB
*Damping Factor: >400
*Class: H - 2 step
*Maximum power consuption: 2400va
*Power supply voltage: 120 or 230 vac 50/60 Hz
*Protections: Short circuit / thermal

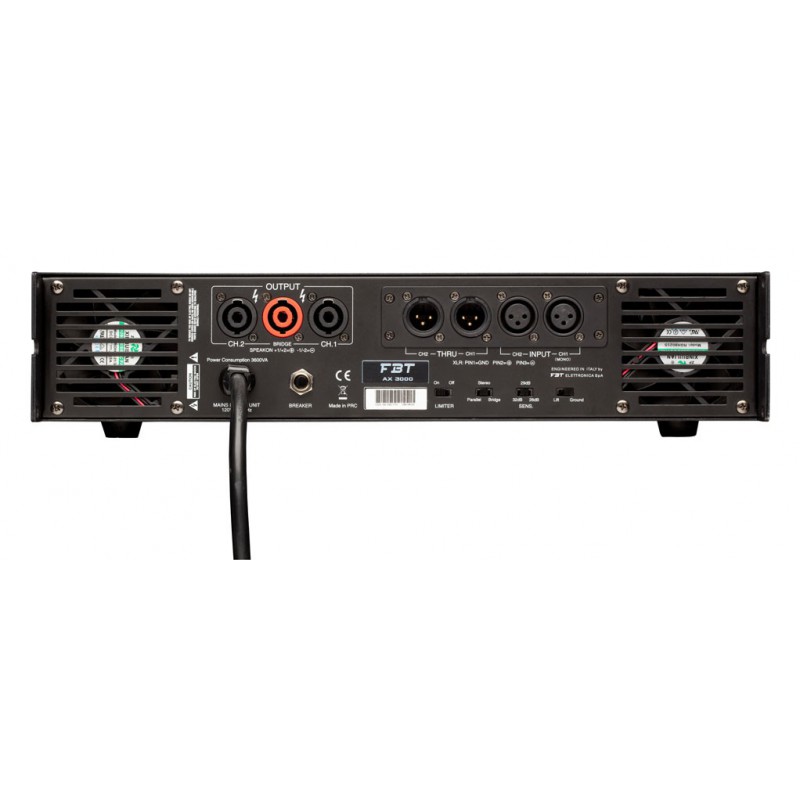

*Connectors: In: XLR/Jack out: Speakon/Binding post
*Net Dimensions (WxHxD): 482x88x452 / 19”x3.5”x17.8”
*Net weight: 21/46.3
AX 2000
AX POWER AMPLIFIERS
Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.
