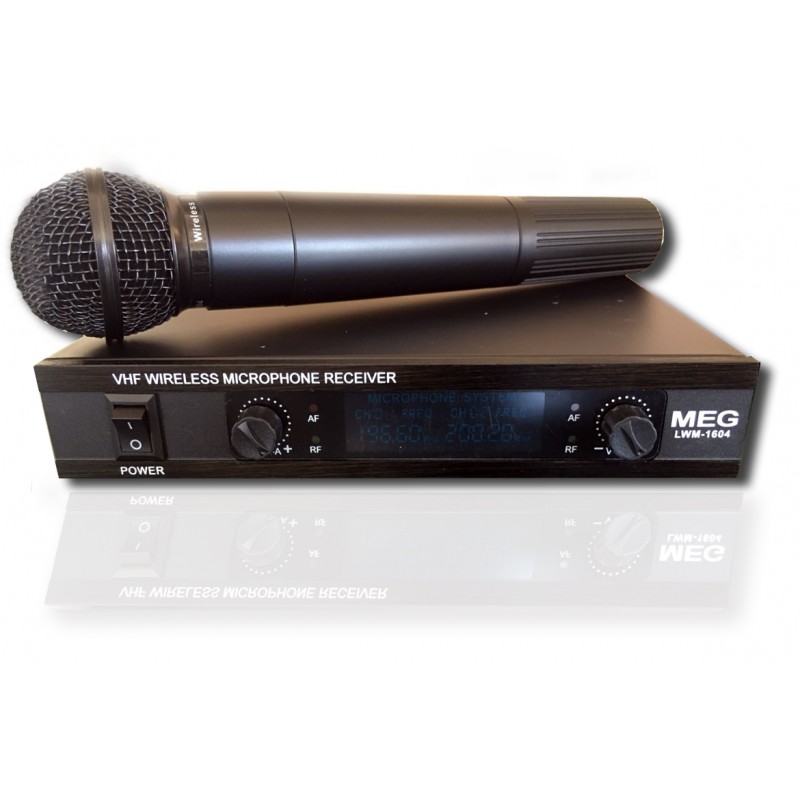

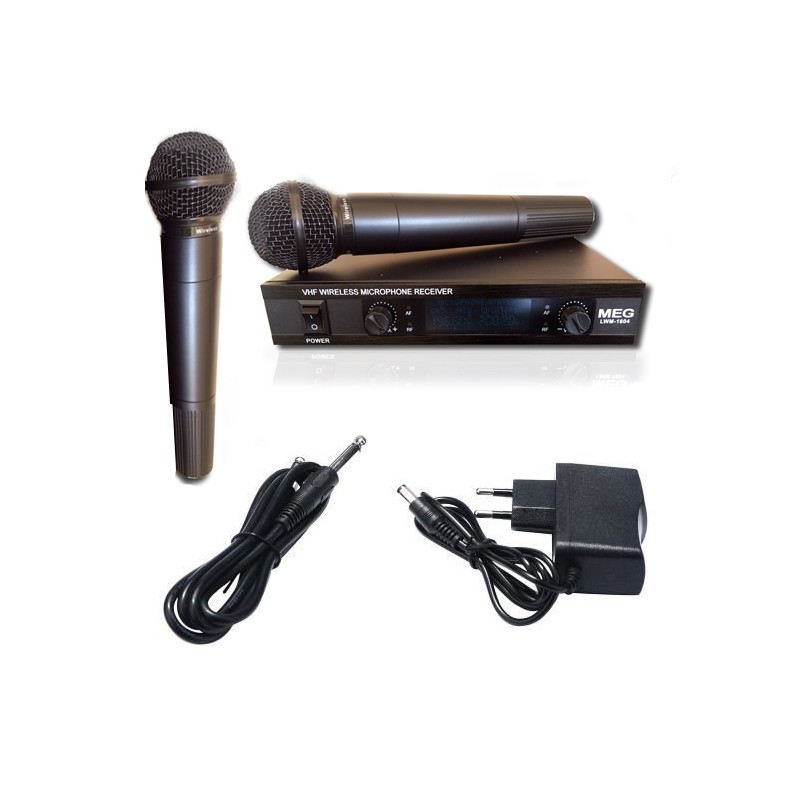

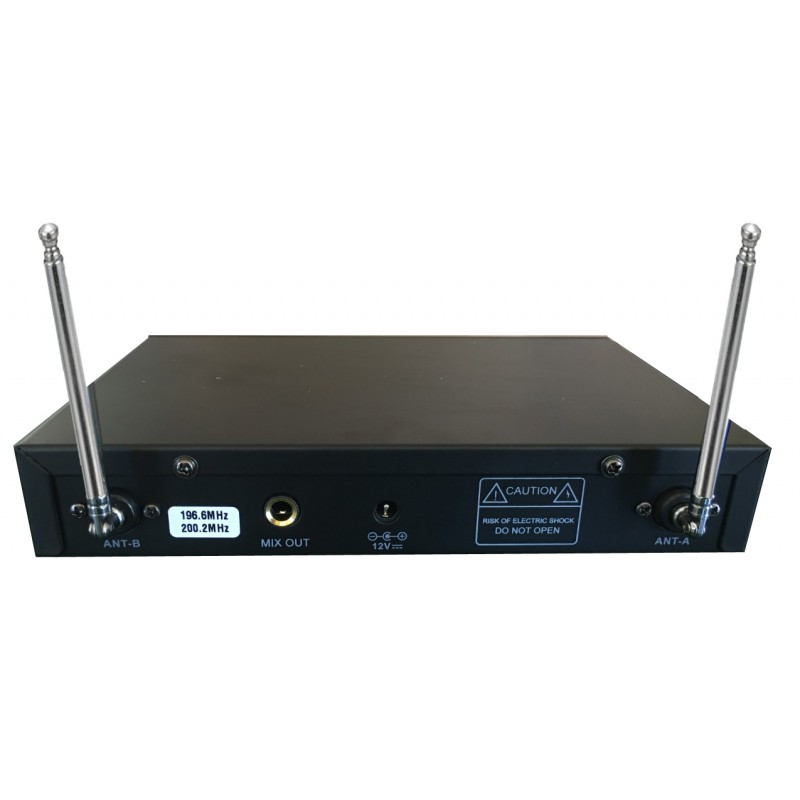

LWM-1604 professional wireless microphone
0,000 TND
LWM-1604 professional wireless microphone
| Receiver: | ||
| • Plastic construction; | ||
| • Plastic front panel; | ||
|
•Frequency range 196.6Mhz Frequency range 200.20Mhz |
||
| • Digital pilot function; | ||
| • Single LCD display. | ||
| Transmitter: | ||
| • Plastic handheld microphone; | ||
| • Two AA batteries provide up to 6 hours of continuous use; | ||
| 50 meters (170 feet) operating range (line of sight). | ||
SYSTEM
Audio Frequency Response：80~1200Hz
Dynamic Range：≥90dB
System Distortion：≤0.5%
SIGNAL-TO-NOISE RATIO：≥90dB
OPERATING RANGE：Appr.60M
OPERATING TEMPERATURE RANGE：-10℃~55℃
CARRIER FREQUENCY RANGE：180~270MHz
RECEIVER
Sensitivity(S/N=30dB):＞2mV
Image Rejection：≥50dB
De-Emphasis：50μs
Audio Output Level：600Ω±10%
Audio Output Level：0~0.5V
Power Supply：AC110V/220V
Current Consumption：5.5W
TRANSMITTER
Frequency Stability：±0.005%
RF Output Power：≤10mW
Spurious Rejection：＞50dB
Modulation Mode：FM
Maximum Deviation Range：±25KHz
Microphone Mode：Dynamic
Pre-Emphasis：50μs
Power Supply：9V Batt./AA1.5V×2
Current Consumption：≤35mA
LWM-1604
LWM-1604 professional wireless microphone
| Receiver: | ||
| • Plastic construction; | ||
| • Plastic front panel; | ||
|
•Frequency range 196.6Mhz Frequency range 200.20Mhz |
||
| • Digital pilot function; | ||
| • Single LCD display. | ||
| Transmitter: | ||
| • Plastic handheld microphone; | ||
| • Two AA batteries provide up to 6 hours of continuous use; | ||
| 50 meters (170 feet) operating range (line of sight). | ||
